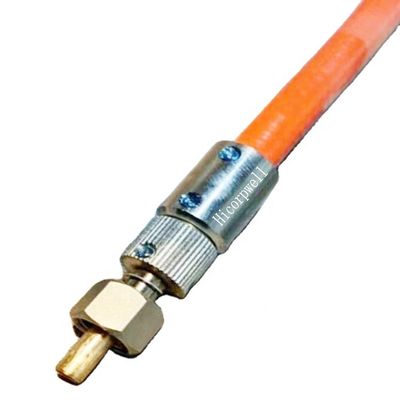

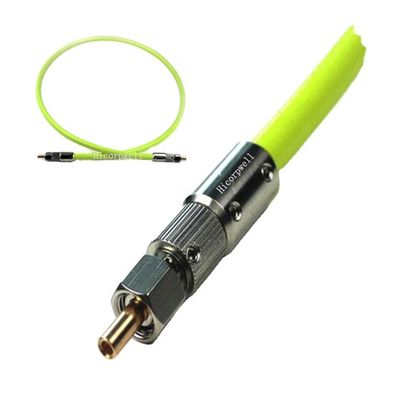

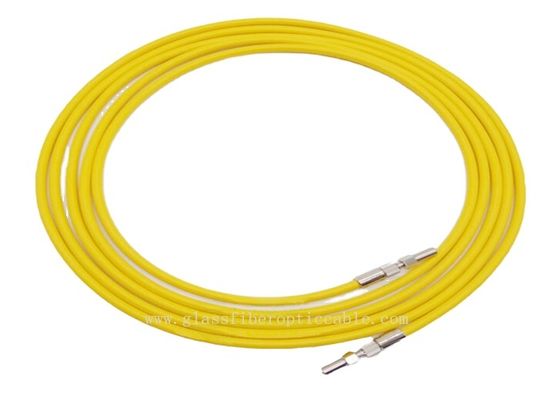

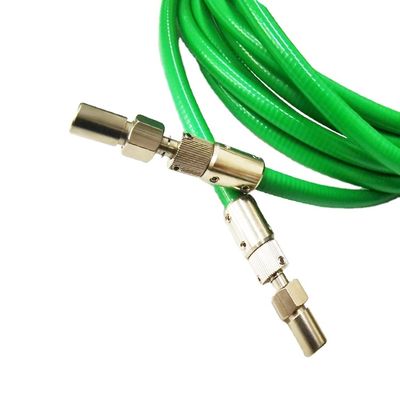

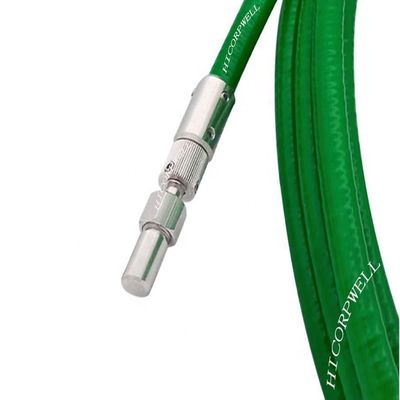

D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors

1
MOQ
$238.98-262.72
価格
D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
ファイバコアの直径: 200μm、300μm、400μm、600μm、800μm
ケーブルの長さ: 3m、5m、10m、20m(カスタマイズ可能)
コア素材: 純石英(低OH)
クラッディング素材: ドープされた石英材料
数値開口: 0.22
動作波長: 400~2400nm
保護管径: 8 mm
被覆直径: 500μm、750μm
コーティングの直径: 780μm、1100μm
ファイバータイプ: ステップインデックスファイバー
トランスミッション効率: > 90%
最高レーザー力: 600W
コネクタタイプ: D80 サファイア付き
熱散逸: 銅合金フェルール
パッケージサイズ: 25X20X1cm
ハイライト:

200μm to 800μm Core Diameters D80 Fiber Optic Cable

,

Sapphire and Air Gap Protection High-Power Laser Fiber

,

Precisely Polished D80 Fiber Connectors Multimode Fiber Cable

基本情報
起源の場所: 中国広州
ブランド名: Hicorpwell
モデル番号: D80
お支払配送条件
製品の説明
D80 High-Power Laser Fiber Cable
1500μm/1000μm D80 3M fiber cable core diameter with active cooling for high-power laser applications.
Product Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts with over 90% transmission efficiency. Designed for fiber-coupled laser systems in the 400-2400 nm wavelength range, it's ideal for high-power semiconductor, solid-state, and fiber lasers.
Key Features
  • Sapphire and Air Gap Protection for enhanced durability
  • Precisely Polished D80 Fiber Connectors
  • Step-index Fiber optimized for VIS-NIR applications
  • 0.22NA as standard (others available on request)
  • High quality stainless steel armored jacket
  • Advanced non-adhesive process for improved heat dissipation
Technical Specifications
Product Model (μm) ST200E ST300E ST400E ST600F
Core Diameter (μm) 200 300 400 600
Cladding Diameter (μm) 500 500 500 750
Coating Diameter 780 780 780 1100
Core Material Pure quartz (Low-OH)
Cladding Material Doped quartz material
Numerical Aperture (NA) 0.22
Operating Wavelength (nm) 400-2400
Length (m) 3, 5, 10 (default 5m, customizable)
Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Why Choose Our D80 Fiber Cables?
Our D80 fiber cables use step-index double-clad fibers and ferrules made from heat-conducting copper alloys for optimal laser transmission. Available in core diameters from 200μm to 800μm, they're engineered for superior heat dissipation in high-power applications.
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a factory verified by TUV.
Q: What is your delivery time?
A: Samples: 3-5 working days. Formal orders: 7-10 working days.
Q: Do you provide OEM service?
A: Yes, we can print your logo or label on products or packaging.
Q: How do you guarantee quality?
A: All products undergo 100% testing before shipment under our quality management system.
