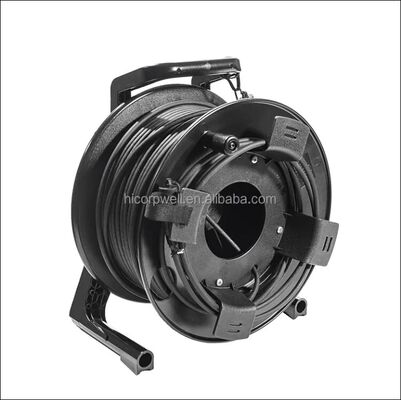

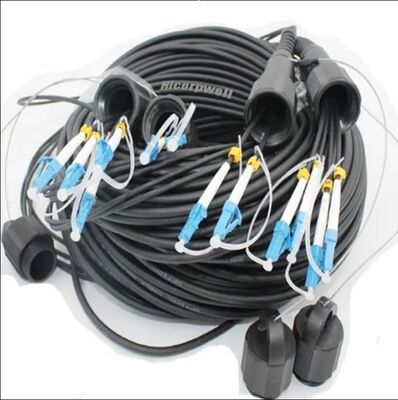

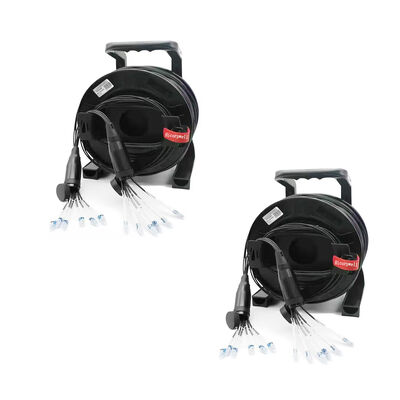

Customized SC UPC 200M TPU Insulation patch cord designed for reliable signal routing between devices. This single-mode fiber optic cable features TPU insulation and is available in various connector types including FC, SC, LC, and ST with PC, UPC, and APC ferrule options.
LC: Small form-factor connector, half the size of SC
ST: Quick release bayonet style connector with twist lock coupling
FC: Fixed connection with threaded barrel housing
SC: General purpose push/pull style connector with square design
PC (Physical Contact): Curved end faces eliminate air gap
UPC (Ultra Physical Contact): Extended polishing for superior surface finish
APC (Angled Physical Contact): 8-degree angled end faces for tight connection
| Parameter | Unit | LC/SC/ST/FC |
|---|---|---|
| SM(9/125) | MM(50/125 or 62.5/125) | PC/UPC/APC/PC |
| Insertion Loss | dB | ≤0.3 / ≤0.2 / ≤0.3 / ≤0.2 |
| Return Loss | dB | ≥45 / ≥50 / ≥60 / ≥35 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |
| Parameter | Specification |
|---|---|
| Connector End A/B | LC, SC, FC, ST or specified |
| Cable Diameter | 4.0mm / 7.0mm / 8.0mm |
| Jacket Material | TPU |
| Fiber Core | 4, 8, 12 or specified |
| Mode | Singlemode / Multimode |
| Operating Wavelength | 1310/1550nm (SM) / 850/1310nm (MM) |
| Polishment | UPC / APC / UPC |
| Insertion Loss (Max) | 1.5dB / 1.0dB |
| Return Loss (Min) | 50dB / 35dB |
| Mechanical Features | Plug: ≤1000N (main cable) Socket: ≤100N (branch cables) |
| Grade | IP68 |
| Mating Time | 500 Min |
| Durability (Max) | 0.2dB |
| Repeatability (Max) | 0.5dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
